Polaris Ranger XP 900/1000 (17-19) Snorkel Kit - High Lifter

Usually ships same day or the following
Free Shipping


There is a no return policy on all snorkel kits so please read full description.

This High Lifter Snorkel kit for the Polaris Ranger XP 900/1000 contains everything you need to properly snorkel your ride.

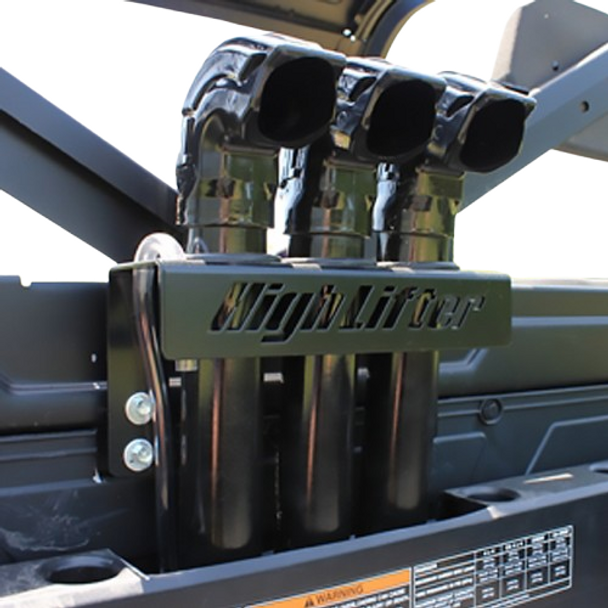

  • Custom Powder Coated Riser Bracket to keep risers straight, evenly spaced and looking good
  • Rubber Grommets to hold riser tubes in place
  • 2” Risers
  • Heavy Duty Vinyl Tubing to route vent lines
  • High Heat Silicon Hose in those critical areas
  • Bellows to keep water out of differentials and transmission
  • All mounting hardware for complete installation
  • Step-by-step instructions complete with detailed photos


  • Provides clean, dry air to the engine and other parts needing venting
  • Prevents mud, water and debris from entering the engine and clutch housings when equipped
  • Bellows allow the differential and transmission air to expand and contract without the need for long vent lines that can easily get plugged with mud or be pulled off
  • Each kit is engineered and cut to fit your specific application


Why Snorkel? Simply put – The right snorkel can be the best insurance you buy for your ATV or UTV.  The right snorkel can protect you expensive investment from disaster when submerged deeper than OE rated water depth.  On the other hand, the wrong snorkel can be your worst investment and nightmare.  We’ve seen countless units come through our shop with leaking snorkels

How could that happen?  Snorkels leak for a variety of reasons.  Installation errors account for a lot these.  Many times a do-it-yourselfer may get it right, but only for a short time.  When pipes aren’t cut to correct length and things don’t line up quite right, many times the snorkel will prevent water, but only for a limited time, then the joint fails.  One of the most common that we’ve seen is failure due to a heat source.  When the snorkel runs close to heat source the snorkel material deteriorates during each ride.  The material gets harder and more brittle and many times begins to deform.  At some point the material cracks and begins to let mud and water in.  Less expensive kits rarely provide the heat resistant material to account for this.  Our goal is to avoid these areas.  This can take more time and more material, but goes a long way to extending the life of the snorkel and the ATV/UTV.

What does a Snorkel do? A snorkel kit is intended to provide clean, dry air to the engine and other parts needing venting on ATVs/UTVs such as clutches, differentials, transmission, carburetors and fuel tanks.  This doesn’t necessarily mean the ATV/UTV should exceed the OE manufacturer’s stated maximum rated water line depth. The snorkel kit is intended as additional margin of protection in the event that the ATV/UTV is inadvertently driven into water deeper than the OE manufacturer’s air intakes will tolerate. There are many considerations to make when increasing water line depth and a snorkel is just one component.


  • You have to cut/trim plastic to install this kit.
  • Snorkel kits are designed for end users with mechanical knowledge, but a professional ATV mechanic is recommended to install kits to prevent costly mistakes.  Also be advised that most dealerships void warranties if a snorkel is installed, so please contact them before purchasing a kit.

2017 Polaris Ranger 1000
2017 Polaris Ranger 1000 Crew
2017 Polaris Ranger 1000 Crew EPS
2017 Polaris Ranger 1000 EPS
2017 Polaris Ranger 900
2017 Polaris Ranger 900 Crew
2017 Polaris Ranger 900 Crew EPS
2017 Polaris Ranger 900 EPS
2018 Polaris Ranger 900 XP
2018 Polaris Ranger 900 Crew
2018 Polaris Ranger 1000 Crew*
2019 Polaris Ranger 900 XP
2019 Polaris Ranger 900 Crew

*Does not fit the 2018 & 2019 Polaris Ranger 1000 non-crew models. Please click the following link for the correct kit:

Polaris Ranger XP 1000 & Northstar (18-21) Snorkel Kit - High Lifter

View AllClose

Warranty Information

Extreme Snorkels will give no written or implied warranty as to the functionality of this product. These snorkel kits will not make ATV's/UTV's waterproof. Damages caused by deep water or other obstacles is not the responsibility of Extreme Snorkels. No returns accepted!
