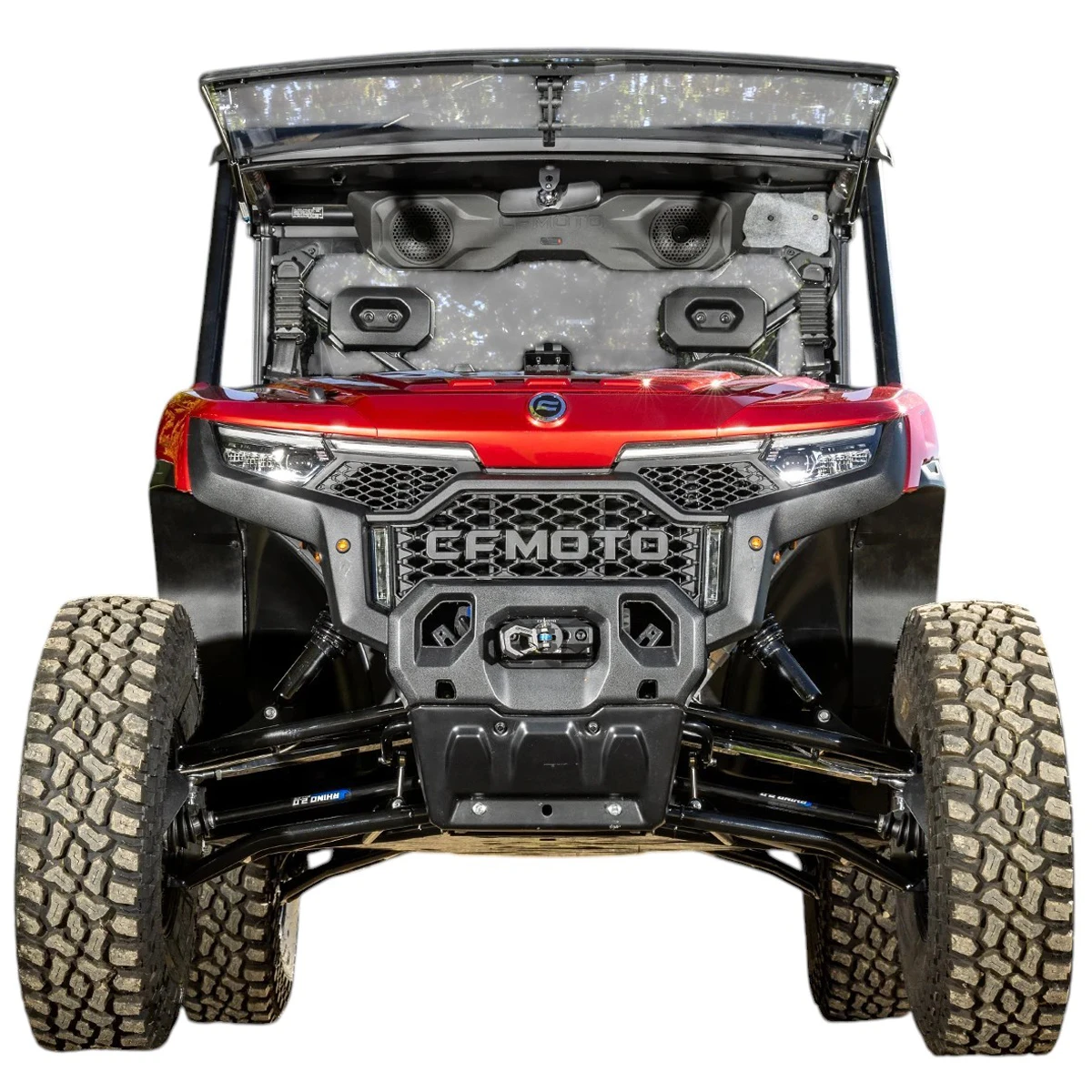

CFMOTO UForce U10 Pro 4" Long Travel Kit
Go wider. Run bigger tires. Dominate tougher terrain.
Your stock CFMOTO UForce U10 Pro wasn't built for the trails you have in mind. SuperATV's 4" Long Travel Kit stretches your stance 8" overall, unlocks room for up to 35" tires, and loads you up with hardware that's stronger than anything that came from the factory. One kit. Total transformation.
What's In The Box — Everything You Need to Install and Go:
- ✅ Atlas Pro A-Arms — 38mm OD chromoly tubing, UV-resistant powder coat, preadjusted pivot blocks for perfect camber out of the box
- ✅ 4 Rhino 2.0 Axles — 4340 chromoly steel, larger shaft size than stock, high-articulation design keeps CVs cooler under hard use; backed by an 18-month warranty
- ✅ Billet Aluminum Hex Tie Rods — Solid 6061-T6 aluminum paired with heat-treated chromoly steel monoball ends; strong, lightweight, and easily adjustable without disassembly
- ✅ UHMW Bushings — Self-lubricating, self-sealing, and built to outlast rubber in extreme conditions
- ✅ Steering Stop Kit — Included to protect your components at full lock
- ✅ Optional: Preinstalled Ball Joints — Skip the press work; choose Heavy-Duty 4340 VAR steel or Keller Performance at checkout
Key Specs at a Glance:
- Adds 4" per side (8" total width increase)
- Widens stance from 64" to 72"
- 1.5" offset front and rear (front forward, rear backward)
- Fits up to 35" tires
- Lifetime warranty on A-arms and tie rods
Click Here for Installation Instructions
Which Ball Joints Are Right for You?
Ball joints aren't included preinstalled by default — you can reuse your stock ones or choose an upgrade at checkout. Here's how the options stack up:
| Stock (Reuse Yours) | SuperATV Heavy-Duty | Keller Performance | |
|---|---|---|---|
| Best For | Budget builds | Most riders | Heavy machines & big tires |
| Material | OEM spec | 4340 VAR steel | Chromoly stud + tool-steel body |
| Strength | Stock | 2× stock load rating | Extreme-duty |
| Greaseable | Varies | ✅ Yes | ✅ Yes |
| Rebuildable | ❌ No | ❌ No | ✅ Yes |
| Install Style | Press-in | Press-in | Threads on like a nut & bolt |
Reuse Your Stock Joints — Works fine if they're in good shape and you're not pushing the limits. Just know they weren't designed for the wider stance and larger tires this kit allows.
SuperATV Heavy-Duty Ball Joints — Built from 4340 VAR steel with zinc plating for corrosion resistance. Twice the load rating of stock, adjustable, and greaseable for easy maintenance. The smart upgrade for most trail and work riders.
Keller Performance Ball Joints — The top-tier choice for serious builds. A two-piece threadable design makes them nearly impossible to pull out — no snap ring needed. Ideal if you're running large tires, heavy loads, or putting your U10 Pro through serious abuse. Greaseable and fully rebuildable for the long haul.
Fitment:
- CFMOTO UFORCE U10 Pro : 2025+
- CFMOTO UFORCE U10 Pro Highland : 2025+
- CFMOTO UFORCE U10 Pro XL : 2025+
- CFMOTO UFORCE U10 Pro XL Highland : 2025+
