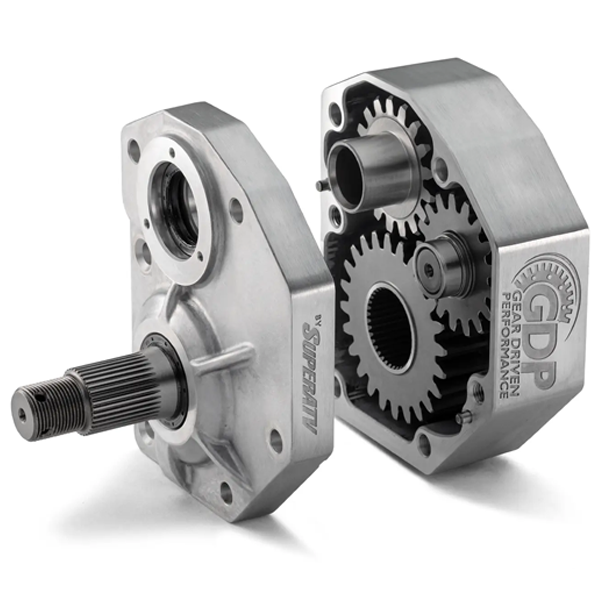

Can-Am Defender HD11 Portal Gear Lift: 4", 6" & 8" SuperATV GDP Portals

Picture your Defender HD11 sitting tall on 38" tires, walking over rock ledges and churning through hub-deep mud while the drivetrain barely breaks a sweat. That's what SuperATV's GDP portal gear lift does. It adds lift and torque in one bolt-on kit, with the gear reduction built right into the hub.

Available in 4", 6", and 8" lift heights for 2026+ Defender HD11 2-Door and MAX 4-Door models.

Choose Your Lift

New 8" portals: The tallest GDP lift for the HD11. You get the most ground clearance available and room for BIG tires on stock suspension. Pair it with the dual-idler setup for the strongest gear set GDP makes, with 60% or 70% reduction for serious low-end torque.

Features & Benefits

• Lift and gear reduction in one kit. You get more clearance and more torque without stacking separate upgrades.
• Protects your drivetrain. Gear reduction happens at the hub, which takes stress off your CVT, differential, prop shaft, and axles.
• Keeps stock suspension geometry. Your axles won't overextend, and CV joints run cooler and last longer.
• Dual- or single-idler options. Dual idlers spread the load over twice the gear surface for maximum strength under big tires.
• Billet or cast aluminum housings. Choose premium 6061 billet or tough cast, both backed by 5/16" steel alloy plates that are stronger than chromoly.
• Precision-ground 9310 steel gears. They run cool and quiet, even under heavy load.
• 1.5" 4340 hardened steel drive shaft for maximum strength.
• Leak-free sealing. The kit uses advanced gaskets, O-rings, a sealed input gear, and a double-lipped output seal.
• Universal hubs fit 4/156, 4/137, 4/115, and 4/110 bolt patterns.
• Limited Lifetime Warranty from SuperATV.

What's Included

• (4) Fully assembled portal hubs with 9310 gears, seals, output shaft, gaskets, and thrust bearings
• (4) Universal hubs with stainless steel slotted rotors and lugs
• (4) Steel alloy backing plates and caliper mounting plates
• Extended brake lines, brake line clips, shims, and all hardware
• Optional frame stiffener (recommended for big tires)

Fitment — 2026+ Can-Am Defender HD11

Compatible with the following models (2026 and newer):

• Can-Am Defender HD11 XT
• Can-Am Defender HD11 XT Cab
• Can-Am Defender HD11 Limited
• Can-Am Defender HD11 XMR w/ Half Doors
• Can-Am Defender MAX HD11 XT
• Can-Am Defender MAX HD11 XT Cab
• Can-Am Defender MAX HD11 Limited
• Can-Am Defender MAX HD11 Lone Star
• Can-Am Defender MAX HD11 Lone Star Cab
• Can-Am Defender MAX HD11 XMR w/ Half Doors

Wheel Requirements

• 4" Portals: 14"+ wheels with a maximum 4.5" backspacing. Not compatible with dual beadlock wheels.
• 6" Portals: 14"+ wheels. 18" wheels have a maximum 4.5" backspacing, and 20"+ wheels have a maximum 5" backspacing.
• 8" Portals: 22"+ wheels with a maximum 5" backspacing. Wheels need a center bore of at least 3.25" (82.55mm), or you'll need a 1" wheel spacer.

Free Shipping — Expert Support — Fast Delivery

All orders ship free to the contiguous 48 states, with same-day or next-day dispatch and 1–3 day transit times. Not sure which lift height or gear reduction is right for your setup? Contact us, our powersports experts are standing by to help you choose with confidence.

Stop settling for stock clearance. Choose your lift, choose your reduction, and start dominating.

Frequently Asked Questions:

What size portals are available for the Can-Am Defender HD11?
SuperATV GDP portals come in 4", 6", and 8" lift heights for 2026+ Defender HD11 2-Door and MAX models.

What is the biggest tire I can run with 8" portals on a Defender HD11?
You can run up to 38" tires on stock suspension without rubbing. Larger tires may fit with minor trimming. but adding forward a-arms will solve a lot of issues.

Which gear reduction should I choose?
Choose a lower reduction (15–30%) if you want to keep more top speed. Choose a higher reduction (45–70%) if you need maximum torque for big tires, mud, and rock crawling.

Do I need a frame stiffener?
It's recommended. Big tires and portals add stress to the frame, and a stiffener reinforces it.

What's the difference between dual and single idler?
A dual idler adds a second gear inside the portal box. That spreads the load for maximum strength, and it's ideal for 8" lifts and oversized tires.
